吸收钳 MDS 21B
品牌: TESEQ
型号: MDS 21B
产品详情


产品标准:

CISPR 13

CISPR 14-1

CISPR 16-1-3

CISPR 16-2-2


产品规格:

Absorbing Clamp

MDS 21B

Parameter

Value

Frequency range:

30 MHz to 1000 MHz

Typical clamp factor:

see graph

Calibrated for receiver impedance:

50 Ω

Connector:

N, female

Max. current ( f < 500 Hz ):

30 A

Max. input power for immunity tests:

5 W

Diameter of appliance power cable:

up to 20 mm

Dimension (WxHxD):

610 mm x 115 mm x 80 mm

Weight:

approx. 6.3 kg

Classification:

for indoor use only

Operation:

+5 °C up to +40 °C

Relative humidity:

up to 80%

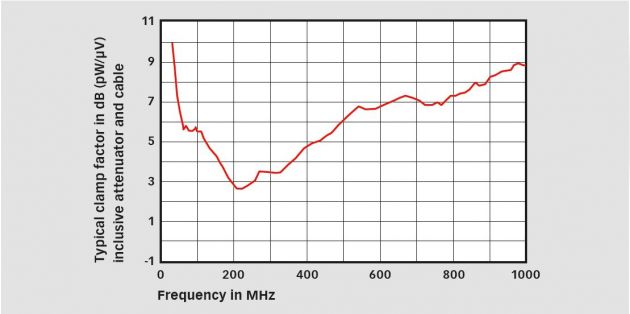

Typical clamp factor in dB (pW/µV) inclusive 6 dB attenuator and 5 m cable RG223U
